Features
This Digital servo has metal housing around the middle which allows for heat to rapidly dissipate,
With double ball bearings you will have smooth movement,
and powerful torque with a limited budget.
It is suitable for 1/10, 1/8 scale cars, robot.
Mechanical Specification
| No. | Item | Specification | |
| 1 | Size | A:40mm B:20mm C:40.4mm | |
| 2 | Weight | 67g | |
| 3 | Gear type | Metal Gear | |
| 4 | Limit angle | No Limit | |
| 5 | Bearing | 2 Ball bearings | |
| 6 | Horn gear spline | 25T | |
| 7 | Horn type | Plastic,POM | |
| 8 | Case | Engineering plastics & Aluminium | |
| 9 | Connector wire | 300mm ±5 mm | |
| 10 | Motor | Metal brush motor | |
| 11 | Splash water resistance | NO | |
Electrical Specification (Function of the Performance)
| No. | Operating Voltage Range | 4.8V | 6V |
| 1 | Idle current(at stopped) | 5mA | 7mA |
| 2 | No load speed | 0.22sec/60° | 0.16 sec/60° |
| 3 | Runnig current(at no load) | 150 mA | 180 mA |
| 4 | Peak stall torque | 19kg.cm | 21.5kg.cm |
| 263.8oz.in | 298.5oz.in | ||
| 5 | Stall current | 1200 mA | 1500mA |
Packing
-Servo×1pc

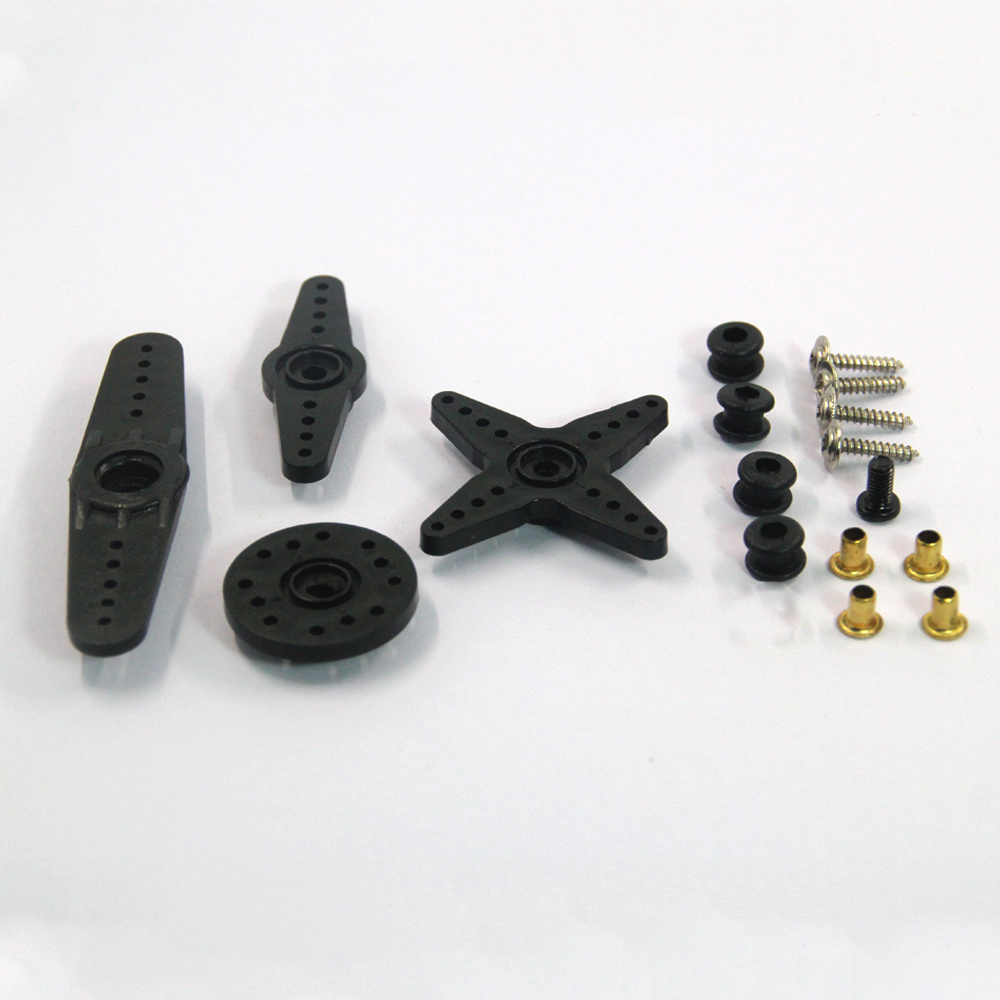

-Servo accessories x 1bag
-Gift packing or PE bag in standard exporter carton
Shipping
Generally, shipping by air express(such as DHL, FedEx, EMS, UPS or TNT and so on) according to your requirements. Freight Collect is also available.
Tracking
We will keep you updated with the tracking no. as soon as possible.
